2322171
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

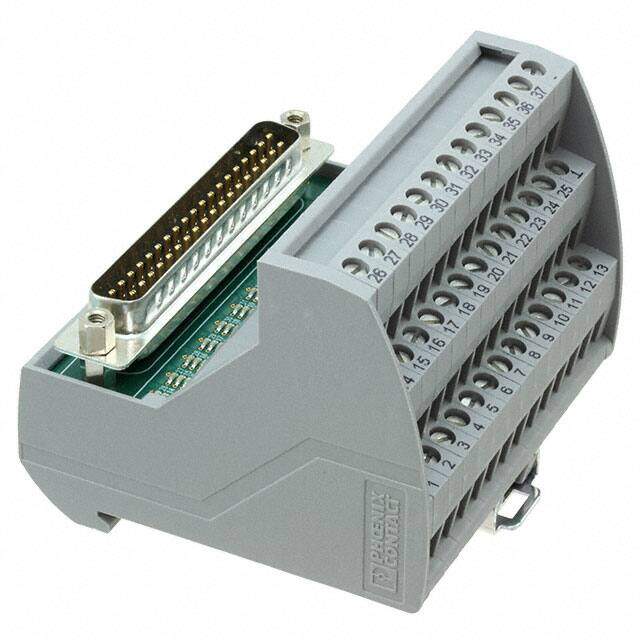

Terminal Block Interface Modules VIP3/SC/D37SUB/M/LED
PDF
/
Buying Options
Total Price: USD $136.76
Unit Price: USD $136.7608
≥1 USD $136.7608
≥10 USD $125.82152
≥100 USD $116.248528
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount DIN Rail
Package / Case Module
Weight 199.600006g
Technical
Operating Temperature -20°C~50°C
Published 2010
Series VARIOFACE, VIP
Feature LED
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type D-Sub
Number of Positions 37
Color Green
Gender Male
Voltage - Rated 24VDC
Orientation Straight
Depth 62mm
Current Rating 2.5A
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 24 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 2.5A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Male
Control Side Cable Retainer Jackscrew Socket
Dimensions
Height 62mm
Length 2.862 72.69mm
Width 2.717 69.01mm
Compliance
RoHS Status RoHS Compliant
