2322168
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

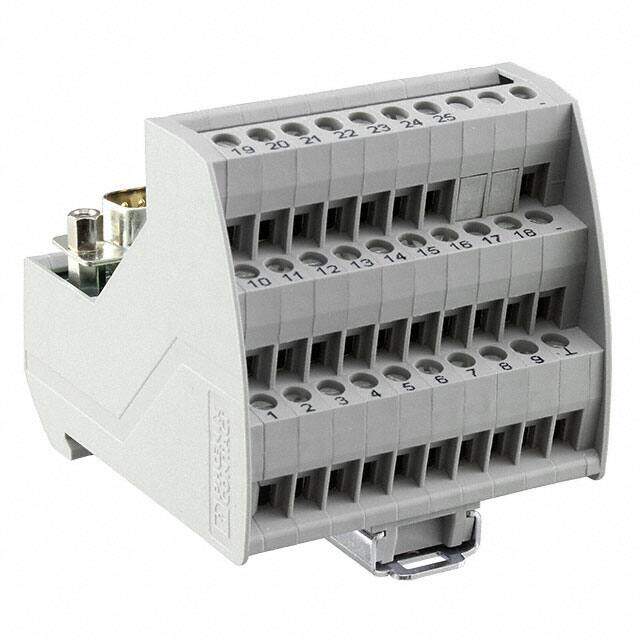

Interface Modules VIP3/SC/D25SUB/M/LED
PDF
/
Buying Options
Total Price: USD $107.14
Unit Price: USD $107.14
≥1 USD $107.14
≥10 USD $98.57056
≥100 USD $91.070848
≥500 USD $86.78516
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount DIN Rail
Package / Case Module
Technical
Operating Temperature -20°C~50°C
Published 2010
Series VARIOFACE, VIP
Feature LED
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Green
Voltage - Rated 24VDC
Depth 62mm
Current Rating 2.5A
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Contact Current Rating 2.5A
Max Input Voltage 24V
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Male
Positions / Poles 25
Control Side Cable Retainer Jackscrew Socket
Dimensions
Height 62mm
Length 2.260 57.40mm
Width 2.717 69.01mm
Compliance
RoHS Status RoHS Compliant
