2322126
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

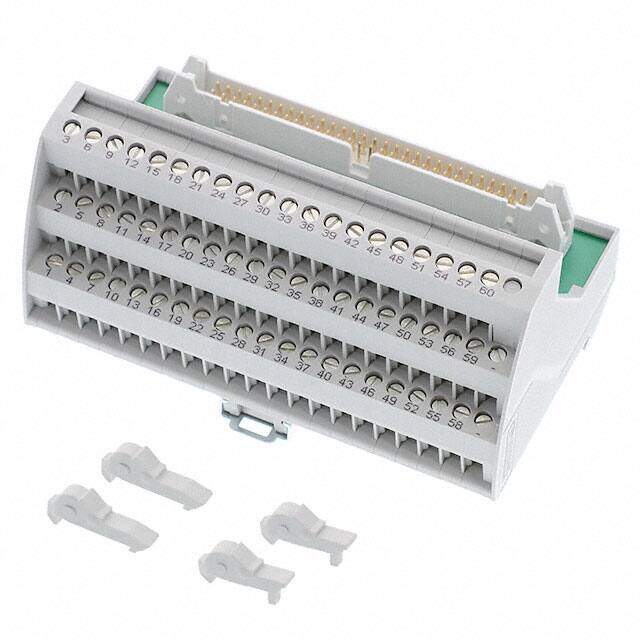

Terminal Block Interface Modules VIP-3/SC/FLK60/LED
PDF
/
Buying Options
Total Price: USD $138.47
Unit Price: USD $138.474546
≥1 USD $138.474546
≥10 USD $130.636363
≥100 USD $123.241857
≥500 USD $116.265899
≥1000 USD $109.684814
Inventory: 7627
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 4.469 113.51mm
Height 62mm
Technical
Control Side Cable Retainer Latches
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 1A
Depth 62mm
Orientation Straight
Voltage - Rated 24V
Gender Male
Color Green
Number of Positions 60
Connector Type IDC
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature LED
Series VARIOFACE, VIP
Published 2011
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 11 Weeks
