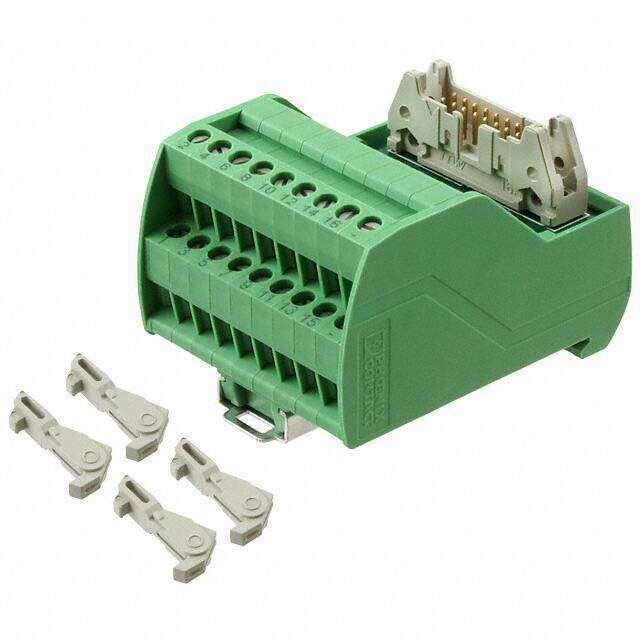

2322061
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
Interface Modules VIP-2/SC/FLK16/LED
PDF
/
Buying Options
Total Price: USD $108.13
Unit Price: USD $108.126153
≥1 USD $108.126153
≥10 USD $102.005804
≥100 USD $96.231887
≥500 USD $90.784804
≥1000 USD $85.646038
Inventory: 7044
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount DIN Rail
Package / Case Module
Weight 119.999988g
Technical
Operating Temperature -20°C~50°C
Published 2011
Series VARIOFACE, VIP
Feature LED
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type IDC
Number of Positions 16
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Color Green
Gender Male
Voltage - Rated 24V
Orientation Straight
Depth 56mm
Current Rating 1A
Number of Contacts 16
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 1A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male
Positions / Poles 16
Control Side Cable Retainer Latches
Current Rating (Per Contact) 1A
Dimensions
Height 56mm
Length 1.969 50.01mm
Width 2.579 65.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
