RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Interface Modules

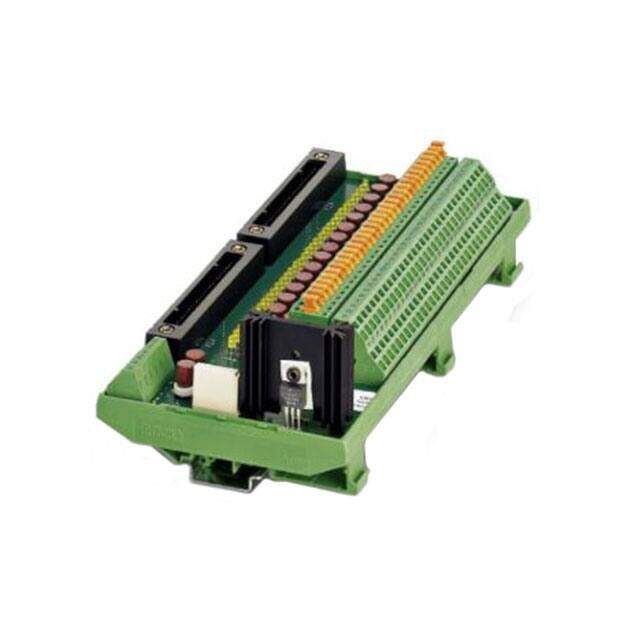

Description Interface Relay Module 2 x 50-Pin Yokogawa KS, Spring Cage, 2A 21.626.4V dc
PDF
/
Inventory: 1475
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 4.370 111.00mm
Length 9.173 232.99mm
Height 126mm

Technical

Current Rating (Per Contact) 63mA
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 50
Control Side Connection Rectangular, Male - KS Interface (2)
Process Side Connection Terminal Blocks - Spring Connection
Max Input Voltage 26.4V
Min Input Voltage 21.6V
Wire Gauge 12-24 AWG
Voltage - Rated 24VDC
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Fuses, LED
Series VARIOFACE, FLKM
Published 2015
Operating Temperature -20°C~50°C

Supply Chain

Factory Lead Time 17 Weeks
