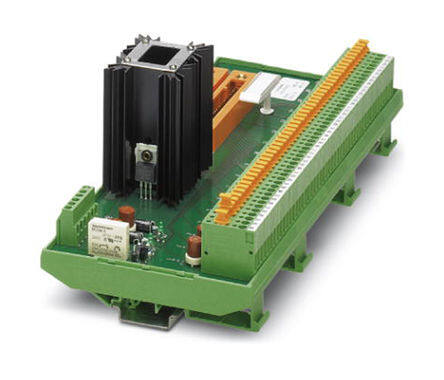

2319197 image
Favorite
2319197 image
Favorite
RoHS
/
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description INTERFACE MOD HDR 48POS 12-24AWG
PDF
/
Inventory: 1364
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 4.921 124.99mm
Length 10.551 268.00mm
Height 125mm

Technical

Control Side Cable Retainer Jackscrew Socket
Positions / Poles 48
Control Side Connection Rectangular, Male - KS Interface (2)
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 30V
Contact Current Rating 300mA
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Depth 97mm
Voltage - Rated 30VDC
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Knife Disconnect, Label Holder
Series VARIOFACE, UM
Published 2014
Operating Temperature -20°C~50°C

Physical

Number of Pins 40
Package / Case Module
