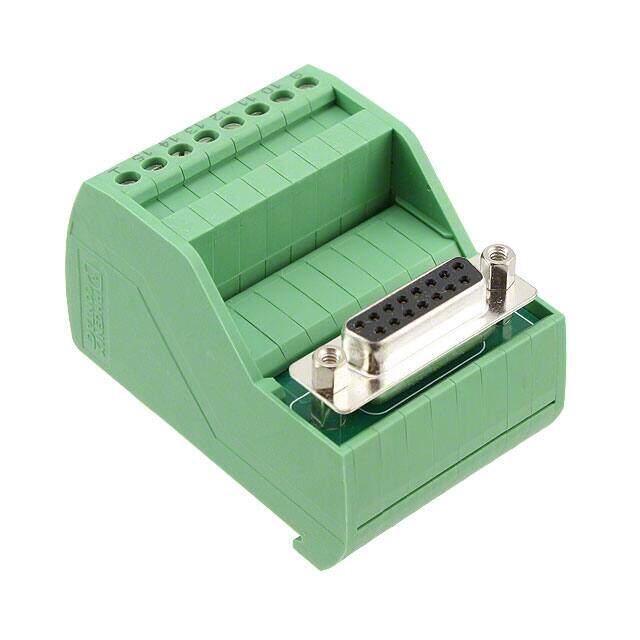

2315175
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD DSUB FMALE 15POS
PDF
/
Buying Options
Total Price: USD $43.82
Unit Price: USD $43.821949
≥1 USD $43.821949
≥10 USD $41.341461
≥100 USD $39.001371
≥500 USD $36.793747
≥1000 USD $34.711089
Inventory: 8844
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.579 65.50mm
Length 1.772 45.00mm
Height 65.5mm
Technical
Current Rating (Per Contact) 2A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 15
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 2A
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 15
Depth 65.5mm
Orientation Straight
Voltage - Rated 125V
Gender Female
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 15
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C
Physical
Weight 109.899988g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
