2315146
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

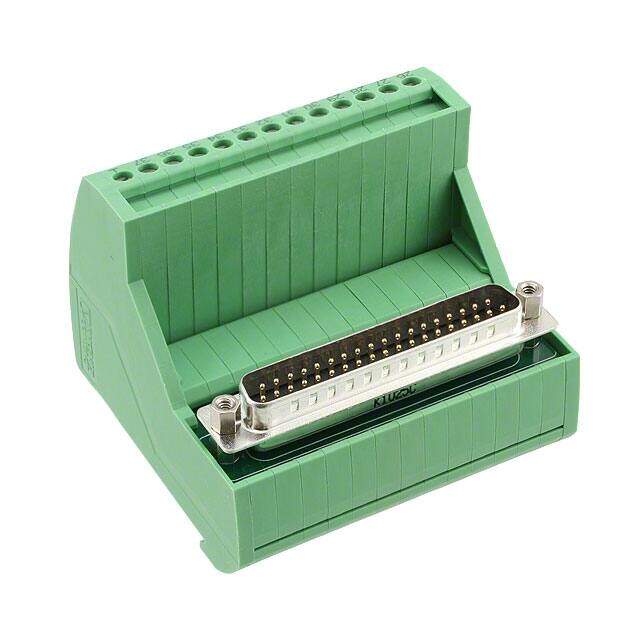

INTERFACE MOD DSUB MALE 37POS
PDF
/
Buying Options
Total Price: USD $58.4
Unit Price: USD $58.3968
≥1 USD $58.3968
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 2.862 72.69mm
Height 69mm
Technical
Current Rating (Per Contact) 2A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 37
Control Side Connection D-Sub, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 2A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 37
Approval Agency CSA, UL
Current Rating 2A
Depth 69mm
Orientation Straight
Voltage - Rated 125V
Gender Male
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 37
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C
Physical
Weight 201.199996g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
