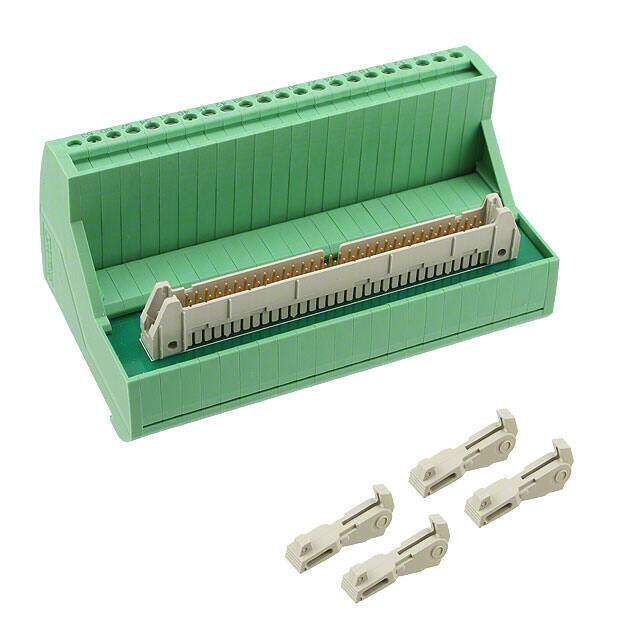

2315104
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD HDR 64POS 12-24AWG
PDF
/
Buying Options
Total Price: USD $93.42
Unit Price: USD $93.4208
≥1 USD $93.4208
≥10 USD $85.95048
≥100 USD $79.411024
≥500 USD $75.673928
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 4.646 118.01mm
Height 69mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 64
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 64
Depth 68.8mm
Voltage - Rated 60V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 64
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C
Physical
Weight 321.599995g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
