2315094
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

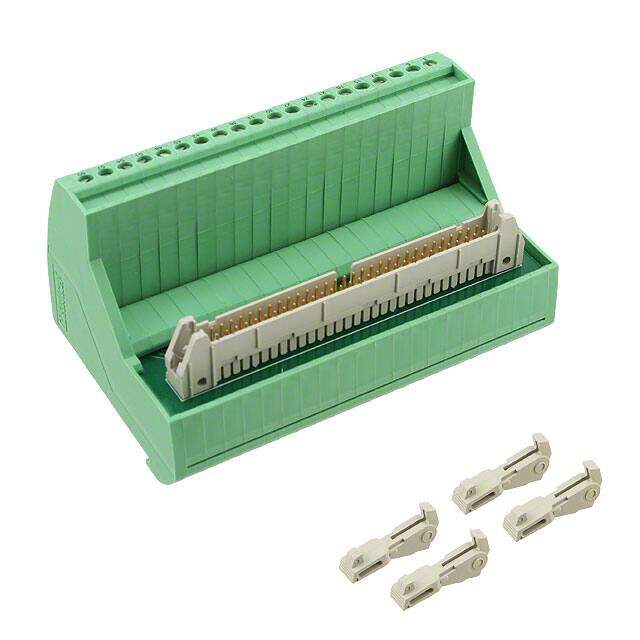

INTERFACE MOD HDR 60POS 12-24AWG
PDF
/
Buying Options
Total Price: USD $96.31
Unit Price: USD $96.3072
≥1 USD $96.3072
≥10 USD $88.6028
≥100 USD $81.861472
≥500 USD $78.009008
Inventory: 41
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 4.252 108.00mm
Height 69mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 60
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 9
Orientation Right Angle
Voltage - Rated 60V
Gender Male
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 60
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C
Physical
Weight 274.600001g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
