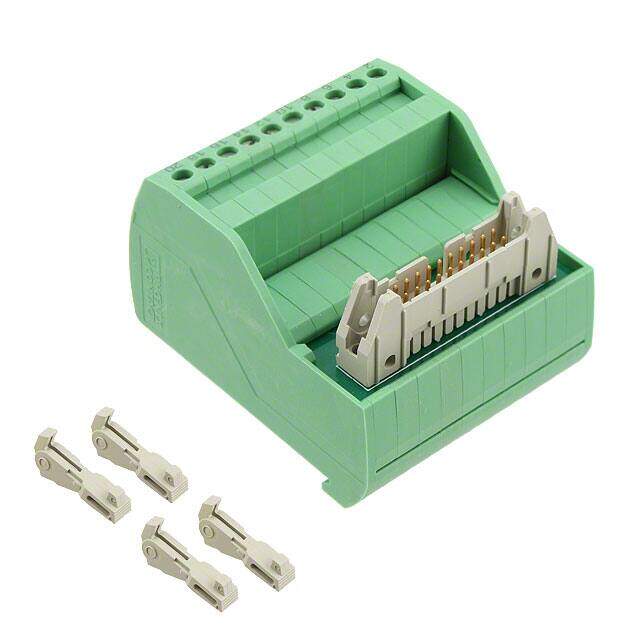

2315049 image
Favorite
2315049 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description INTERFACE MOD HDR 20POS 12-24AWG
PDF
/
Buying Options
Total Price: USD $46.72
Unit Price: USD $46.7192
≥1 USD $46.7192
≥10 USD $42.98272
≥100 USD $39.712288
≥500 USD $37.843344
Inventory: 76
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 2.579 65.50mm
Length 2.169 55.09mm
Height 58.5mm

Technical

Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 20
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 20
Approval Agency CSA, UL
Depth 65.5mm
Orientation Straight
Voltage - Rated 60V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 20
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C

Physical

Weight 119.999988g
Number of Pins 20
Package / Case Module
Mount DIN Rail

Supply Chain

Factory Lead Time 8 Weeks
