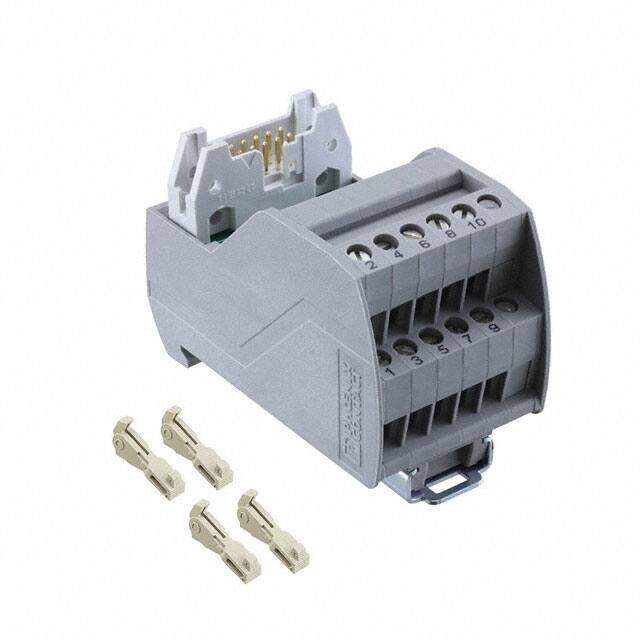

2315010
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD HDR 10POS 12-24AWG
PDF
/
Buying Options
Total Price: USD $35.87
Unit Price: USD $35.8688
≥1 USD $35.8688
≥10 USD $33
≥100 USD $30.48936
≥500 USD $29.05452
≥1000 USD $28.895011
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.579 65.50mm
Length 1.366 34.70mm
Height 65.5mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 10
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 10
Depth 65.5mm
Orientation Straight
Voltage - Rated 60V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 10
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2008
Operating Temperature -20°C~50°C
Physical
Weight 91.399997g
Number of Pins 10
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
