RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules

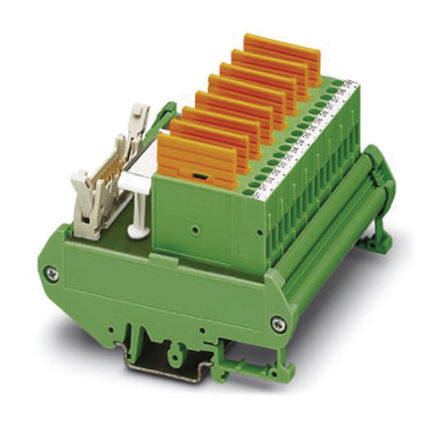

Description Terminal Block Interface Modules FLKM 16/AO/SI/DV
PDF
/
Inventory: 1437
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 3.543 90.00mm
Length 3.543 90.00mm
Height 90mm

Technical

Control Side Cable Retainer Latches
Positions / Poles 16
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 60V
Contact Current Rating 50mA
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Depth 68mm
Voltage - Rated 60VDC
Termination IDC
Part Status Active
Feature Fuses, Label Holder
Series VARIOFACE, FLKM
Published 2011
Operating Temperature -20°C~50°C

Physical

Weight 170.097139g
Package / Case Module

Supply Chain

Factory Lead Time 11 Weeks
