2304429
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

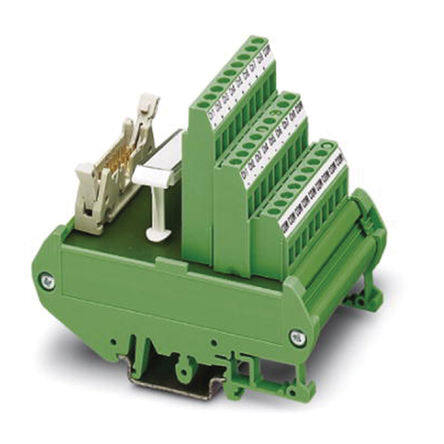

Terminal Block Interface Modules FLKM 16/AI/DV
PDF
/
Inventory: 1606
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Package / Case Module
Weight 122.570014g
Technical
Operating Temperature -20°C~50°C
Published 2010
Series VARIOFACE, FLKM
Feature Label Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Voltage - Rated 60VDC
Depth 81mm
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Contact Current Rating 1A
Max Input Voltage 60V
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male
Positions / Poles 16
Control Side Cable Retainer Latches
Dimensions
Height 90mm
Length 2.244 57.00mm
Width 3.543 90.00mm
Compliance
RoHS Status RoHS Compliant
