2302353
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

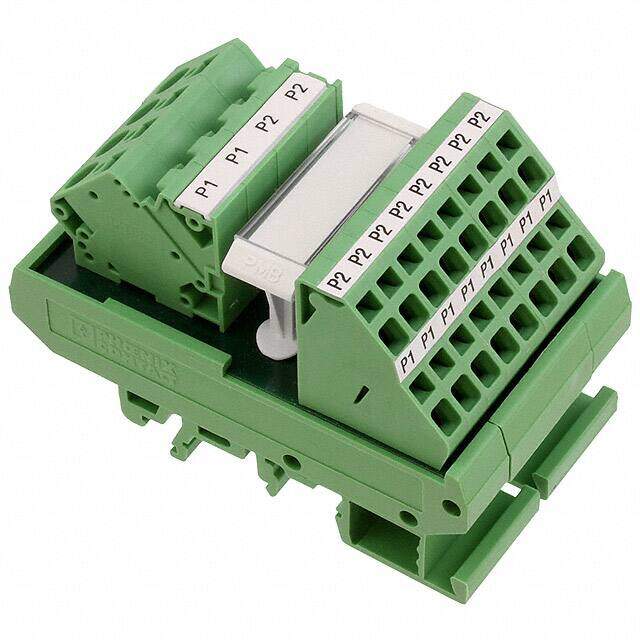

Interface Modules UMK-PVB2/16 ZFKDS
PDF
/
Buying Options
Total Price: USD $104.89
Unit Price: USD $104.8872
≥1 USD $104.8872
≥10 USD $96.49376
≥100 USD $89.152096
≥500 USD $84.956696
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 3.031 76.99mm
Length 1.772 45.00mm
Height 77mm
Technical
Process Side Connection Terminal Blocks - Spring Connection
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 10-24 AWG
Number of Contacts 10
Approval Agency cULus
Voltage - Rated AC 250V
Current Rating 32A
Depth 77mm
HTS Code 8536.69.40.40
Color Green
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Label Holder
Series VARIOFACE, UMK
Published 2008
Packaging Bulk
Operating Temperature -20°C~50°C
Physical
Weight 117.500013g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
