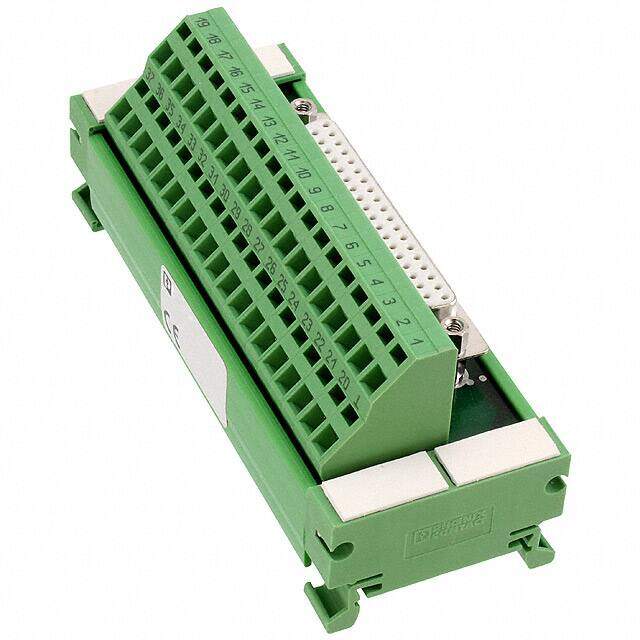

2293695
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD DSUB FMALE 37POS
PDF
/
Inventory: 4651
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Weight 115.770012g
Material Polyamide
Package / Case Module
Mount DIN Rail
Technical
Operating Temperature -20°C~50°C
Published 2011
Series VARIOFACE, UM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type D-Sub
Number of Positions 37
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Gender Female
Voltage - Rated 125V
Orientation Straight
Depth 45mm
Current Rating 2.5A
Number of Contacts 37
Wire Gauge 14-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 14 AWG
Number of Poles 37
Contact Current Rating 2.5A
Process Side Connection Terminal Blocks - Spring Connection
Control Side Connection D-Sub, Female
Positions / Poles 37
Control Side Cable Retainer Jackscrew Socket
Current Rating (Per Contact) 2.5A
Dimensions
Length 4.764 121.01mm
Width 1.772 45.00mm
Compliance
RoHS Status RoHS Compliant
Supply Chain
Factory Lead Time 4 Weeks
