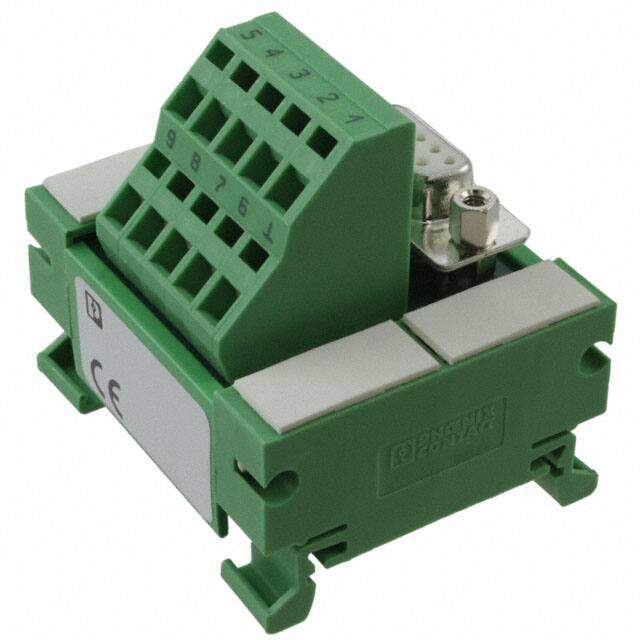

2293666 image
Favorite
2293666 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description Terminal Block Interface Modules UM 45-D 9SUB/B/ZFKDS
PDF
/
Buying Options
Total Price: USD $132.96
Unit Price: USD $132.9592
≥1 USD $132.9592
≥10 USD $122.3244
≥100 USD $113.017168
Inventory: 28
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 1.772 45.00mm
Length 2.126 54.00mm
Height 45mm

Technical

Current Rating (Per Contact) 2.5A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 9
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Spring Connection
Contact Current Rating 2.5A
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 14-24 AWG
Number of Contacts 9
Current Rating 2.5A
Depth 45mm
Orientation Straight
Voltage - Rated 125V
Gender Female
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 9
Connector Type D-Sub
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, UM
Published 2011
Operating Temperature -20°C~50°C

Physical

Weight 78.299994g
Material Polyamid, Polyamide
Package / Case Module
Mount DIN Rail

Supply Chain

Factory Lead Time 4 Weeks
