RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules

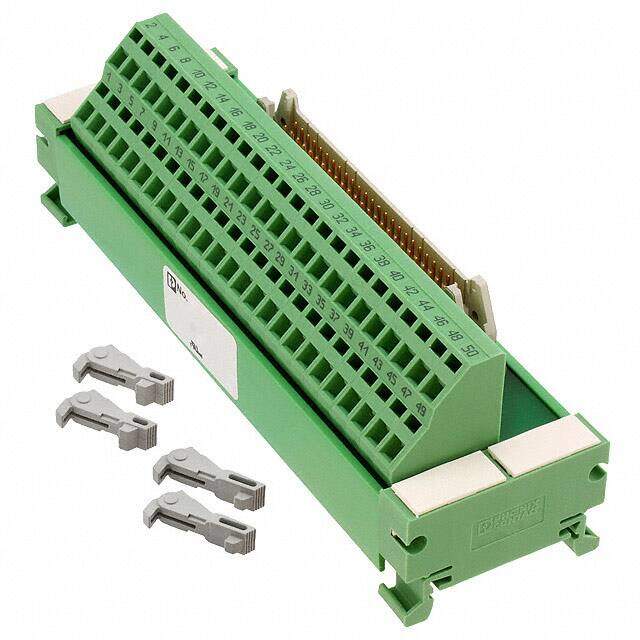

Description Interface Modules UM 45-FLK50/ZFKDS
PDF
/
Buying Options
Total Price: USD $279.71
Unit Price: USD $279.708
≥1 USD $279.708
≥10 USD $257.32696
Inventory: 83
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount DIN Rail
Package / Case Module
Weight 141.747616g

Technical

Operating Temperature -20°C~50°C
Published 2011
Series VARIOFACE, UM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Cable, Flat
Number of Positions 50
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Gender Male
Voltage - Rated 60VDC
Depth 45mm
Current Rating 1A
Number of Contacts 50
Wire Gauge 14-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 14 AWG
Contact Current Rating 1A
Process Side Connection Terminal Blocks - Spring Connection
Control Side Connection Rectangular, Male
Positions / Poles 50
Control Side Cable Retainer Latches
Current Rating (Per Contact) 1A

Dimensions

Length 5.945 151.00mm
Width 1.772 45.00mm

Compliance

RoHS Status RoHS Compliant
