2293572
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

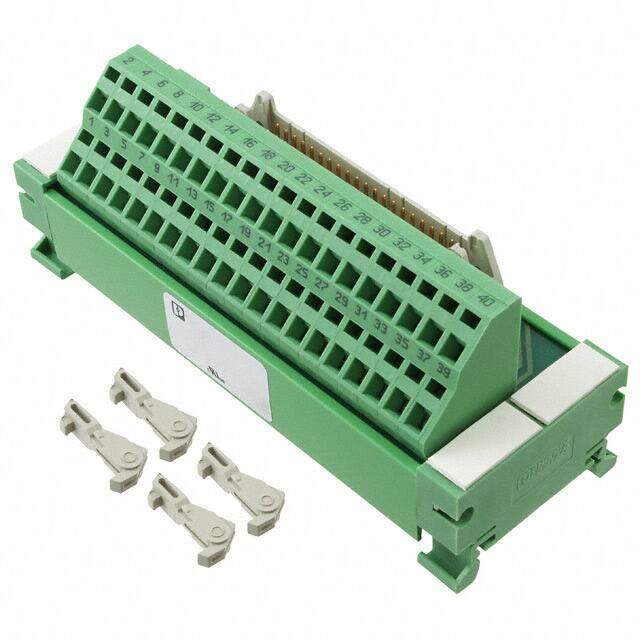

Terminal Block Interface Modules UM 45-FLK40/ZFKDS
PDF
/
Buying Options
Total Price: USD $194.41
Unit Price: USD $194.4096
≥1 USD $194.4096
Inventory: 24
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 1.772 45.00mm
Length 4.961 126.00mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 40
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Spring Connection
Contact Current Rating 1A
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 14-24 AWG
Number of Contacts 40
Current Rating 1A
Depth 45mm
Voltage - Rated 60VDC
Gender Male
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 40
Connector Type Cable, Flat
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, UM
Published 2011
Operating Temperature -20°C~50°C
Physical
Weight 144.800009g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
