2290423
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

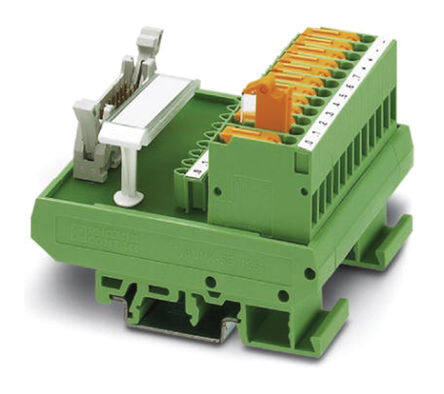

Terminal Block Interface Modules FLKM 14/KDS3-MT/ PPA/PLC
PDF
/
Inventory: 1404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3.031 76.99mm
Length 2.638 67.00mm
Height 77mm
Technical
Control Side Cable Retainer Latches
Positions / Poles 14
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 60V
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Depth 61mm
Voltage - Rated 60V
Termination IDC
Part Status Active
Feature Knife Disconnect, Label Holder, Test Sockets
Series VARIOFACE, FLKM
Published 2010
Operating Temperature -20°C~50°C
Physical
Weight 126.470001g
Package / Case Module
Supply Chain
Factory Lead Time 8 Weeks
