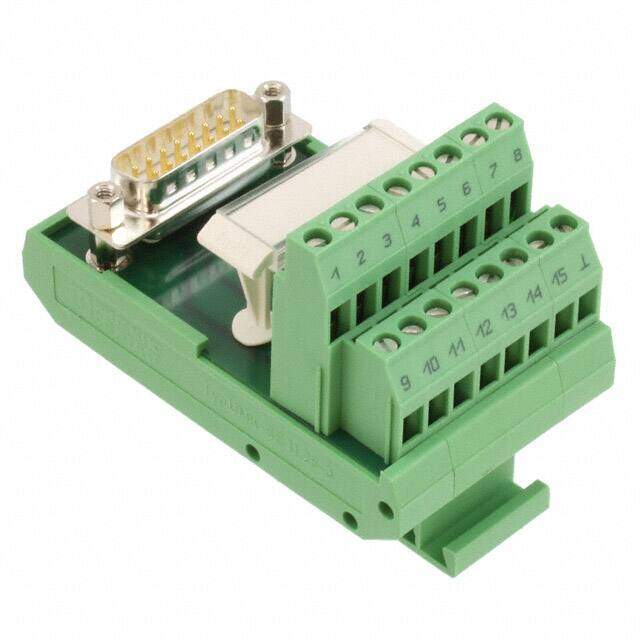

2281131
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD DSUB MALE 15POS
PDF
/
Buying Options
Total Price: USD $233.08
Unit Price: USD $233.0768
≥1 USD $233.0768
≥10 USD $214.43224
Inventory: 23
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Package / Case Module
Number of Pins 15
Weight 85.048569g
Technical
Operating Temperature -20°C~50°C
Published 2012
Series VARIOFACE, FLKM
Feature Label Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type D-Sub
Number of Positions 15
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Color Green
Gender Male
Voltage - Rated 125V
Orientation Straight
Depth 45mm
Current Rating 2.5A
Approval Agency cULus
Number of Contacts 15
Operating Supply Voltage 125V
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 2.5A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Male
Positions / Poles 15
Control Side Cable Retainer Jackscrew Socket
Current Rating (Per Contact) 2.5A
Dimensions
Height 58.5mm
Length 1.772 45.00mm
Width 3.031 76.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
