2281102
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

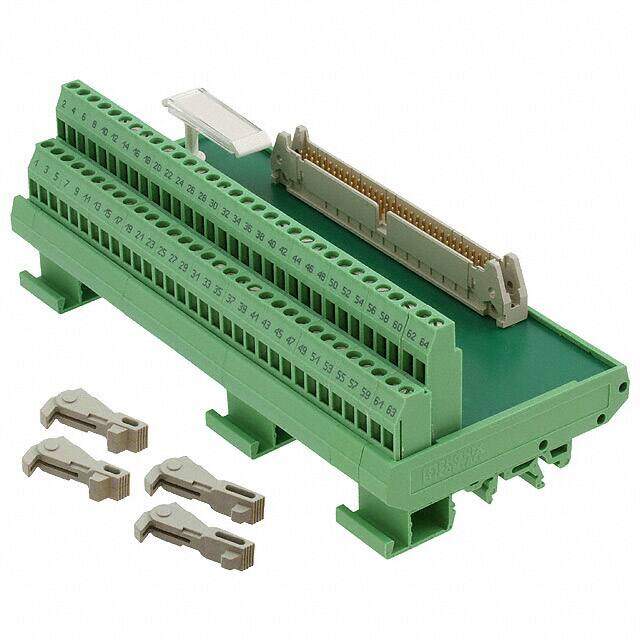

Interface Modules FLKM 64 64 POS MALE CON
PDF
/
Buying Options
Total Price: USD $510.66
Unit Price: USD $510.664
≥1 USD $510.664
≥10 USD $469.81352
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Package / Case Module
Weight 3.529998g
Technical
Operating Temperature -20°C~50°C
Published 1999
Series VARIOFACE, FLKM
Feature Label Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Number of Positions 64
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Color Green
Voltage - Rated 60VDC
Current Rating 1A
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Contact Current Rating 1A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male
Positions / Poles 64
Control Side Cable Retainer Latches
Current Rating (Per Contact) 1A
Dimensions
Length 6.646 168.81mm
Width 3.031 76.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
