2281063
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

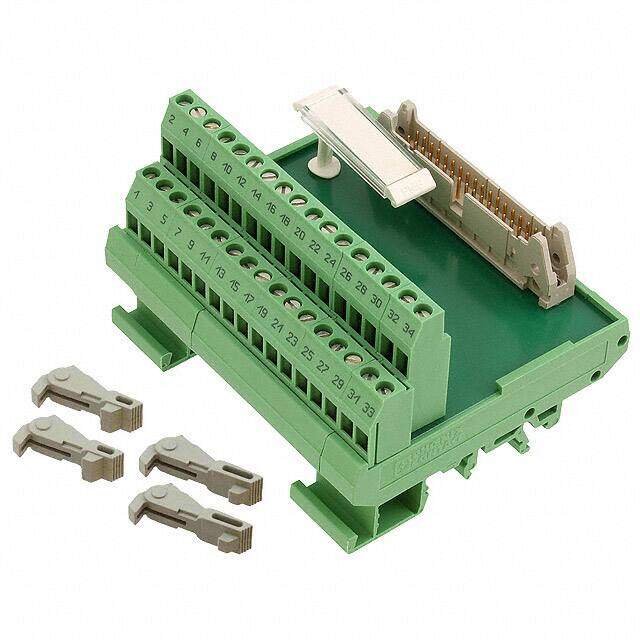

Interface Modules FLKM 34 34 POS MALE CON
PDF
/
Buying Options
Total Price: USD $265.93
Unit Price: USD $265.9272
≥1 USD $265.9272
≥10 USD $244.6488
Inventory: 22
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Package / Case Module
Weight 2.040003g
Technical
Operating Temperature -20°C~50°C
Packaging Bulk
Published 1999
Series VARIOFACE, FLKM
Feature Label Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Cable, Flat
Number of Positions 34
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Color Green
Gender Male
Voltage - Rated 60VDC
Orientation Straight
Depth 77mm
Current Rating 1A
Approval Agency cULus
Number of Contacts 34
Operating Supply Voltage 125V
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 1A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male
Positions / Poles 34
Control Side Cable Retainer Latches
Current Rating (Per Contact) 1A
Dimensions
Length 3.543 90.00mm
Width 3.031 76.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
