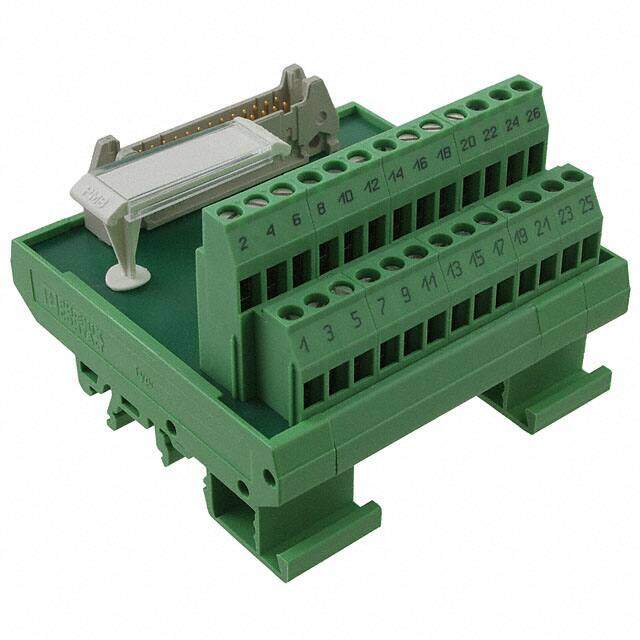

2281050 image
Favorite
2281050 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description INTERFACE MOD HDR 26POS 12-24AWG
PDF
/
Buying Options
Total Price: USD $223.82
Unit Price: USD $223.8192
≥1 USD $223.8192
≥10 USD $205.91384
Inventory: 20
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 3.031 76.99mm
Length 3.102 78.79mm
Height 58.5mm

Technical

Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 26
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Max Current Rating 1A
Max Supply Voltage 60V
Number of Circuits 26
Wire Gauge 12-24 AWG
Number of Contacts 26
Approval Agency cULus
Current Rating 1A
Depth 58.5mm
Orientation Straight
Voltage - Rated 60VDC
Gender Male
Number of Rows 2
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 26
Connector Type Cable, Flat
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Label Holder
Series VARIOFACE, FLKM
Published 1999
Packaging Bulk
Operating Temperature -20°C~50°C

Physical

Weight 130.850002g
Number of Pins 26
Package / Case Module
Mount DIN Rail

Supply Chain

Factory Lead Time 9 Weeks
