2280051
RoHS
/
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

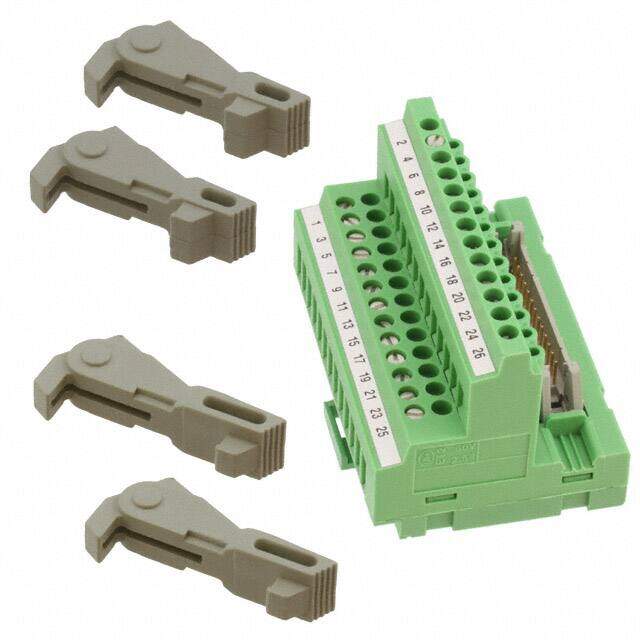

Terminal Block Interface Modules FLK 26
PDF
/
Inventory: 1325
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 1.969 50.00mm
Length 2.972 75.49mm
Height 58.5mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 26
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 26
Current Rating 1A
Voltage - Rated 60VDC
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Test Connectors
Series VARIOFACE, FLK
Published 2003
Operating Temperature -20°C~50°C
Physical
Weight 113.398093g
Number of Pins 26
Package / Case Module
Supply Chain
Factory Lead Time 6 Weeks
