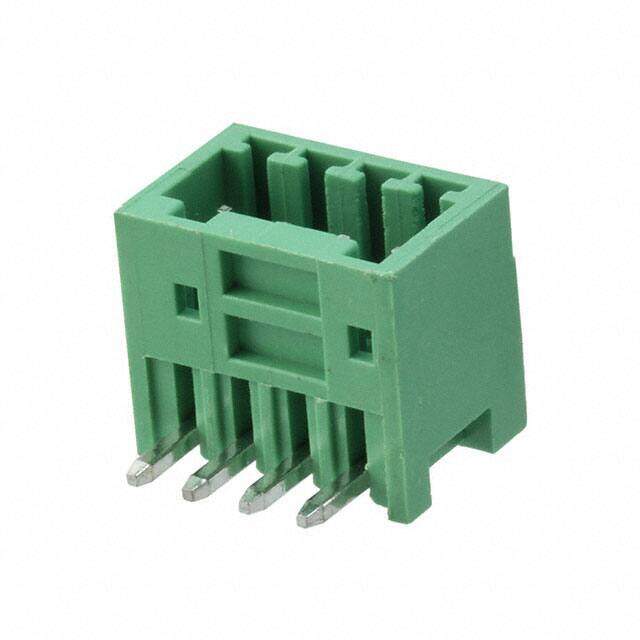

691382010004 image
Favorite
691382010004 image
Favorite

691382010004

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.067377
≥1 USD $1.067377
≥10 USD $1.006959
≥100 USD $0.949965
≥500 USD $0.896187
≥1000 USD $0.84546
Inventory: 5130
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Positions Per Level 4
Current - UL 12A
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Lead Pitch 2.5mm
Termination Style Solder
Insulation Height 0.319 8.10mm
Pitch 0.098 2.50mm
Gender Male
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-TBL Series 382
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Polyamide (PA66), Nylon 6/6
Number of Pins 4
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
