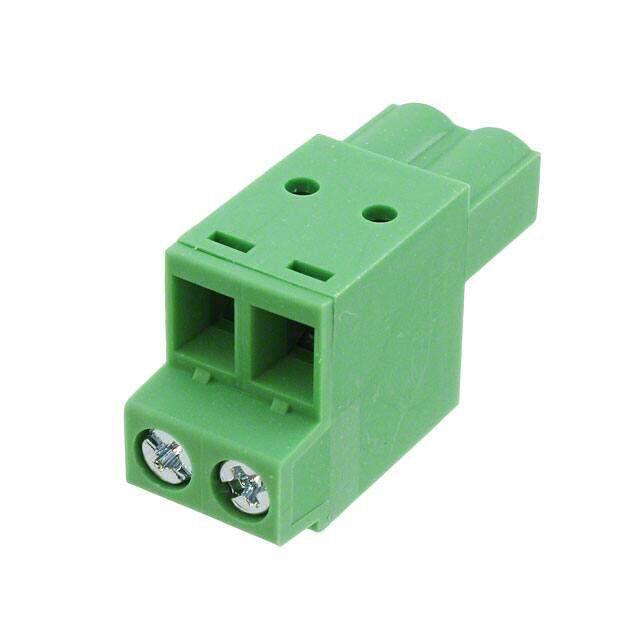

691373500002B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14683
≥1 USD $2.14683
≥10 USD $2.025306
≥100 USD $1.910672
≥500 USD $1.802517
≥1000 USD $1.700487
Inventory: 9317
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Brass, Bronze
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-TBL Series 373B
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Terminal Block
Type Plug, Female Sockets
Number of Positions 2
Color Green
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 0.587 14.91mm
Current Rating 8A
Termination Style Screw - Pressure Clip
Number of Contacts 2
Voltage 300V
Number of Levels 1
Current 16A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 28 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-24 AWG
Current - UL 16A
Torque - Screw 0.45 Nm (4.0 Lb-In)
Positions Per Level 2
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-3.3mm2
Wire Strip Length 10mm
Number of Positions Per Level 2
Screw Size M2.6
Stripping Length 10mm
Dimensions
Length 14.9mm
Width 10.16mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
