691352510002
RoHS
RoHS compliant
RoHS compliantPackage 300
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

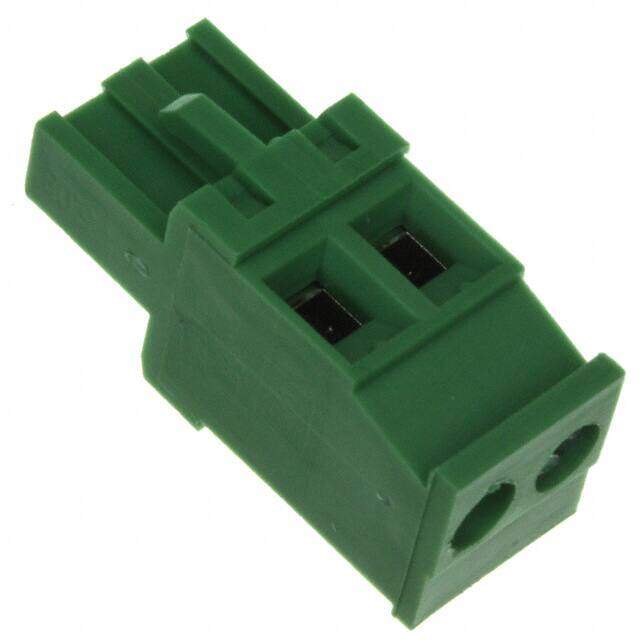

TERM BLOCK PLUG 2POS 5.08MM
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.19173
≥1 USD $1.19173
≥10 USD $1.124275
≥100 USD $1.060639
≥500 USD $1.000596
≥1000 USD $0.943959
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 300
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 352
Feature Retention Latches (Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 2
Color Green
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 1.024 26.01mm
Current Rating 15A
Termination Style Screw - Leaf Spring, Wire Guard
Number of Contacts 2
Contact Gender Female
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 24 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-24 AWG
Current - UL 15A
Torque - Screw 0.4 Nm (3.5 Lb-In)
Positions Per Level 2
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-3mm2
Wire Strip Length 6-7mm
Number of Positions Per Level 2
Screw Size M3
Stripping Length -7mm
Dimensions
Length 12.6mm
Width 10.16mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
