691323300008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

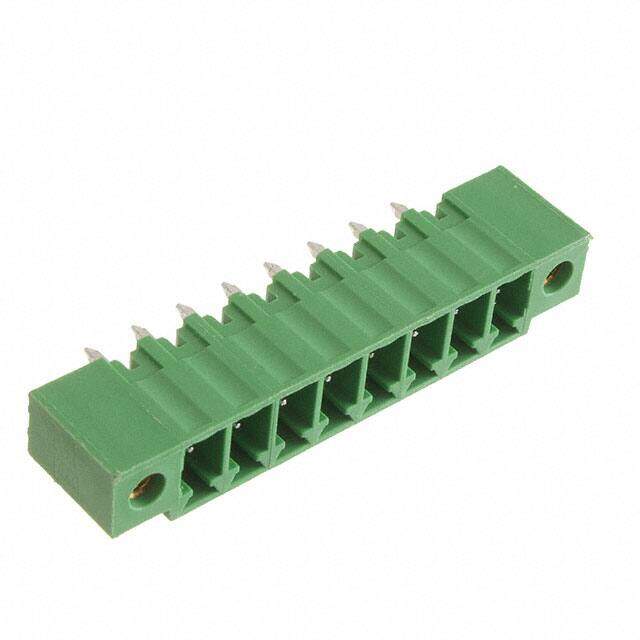

3.81 MM TERMINAL BLOCK HEADER, V
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.0304
≥1 USD $4.0304
≥10 USD $3.66344
≥100 USD $3.4408
≥500 USD $3.14512
≥1000 USD $2.55464
Inventory: 181
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 3233
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.362 9.20mm
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Positions Per Level 8
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
