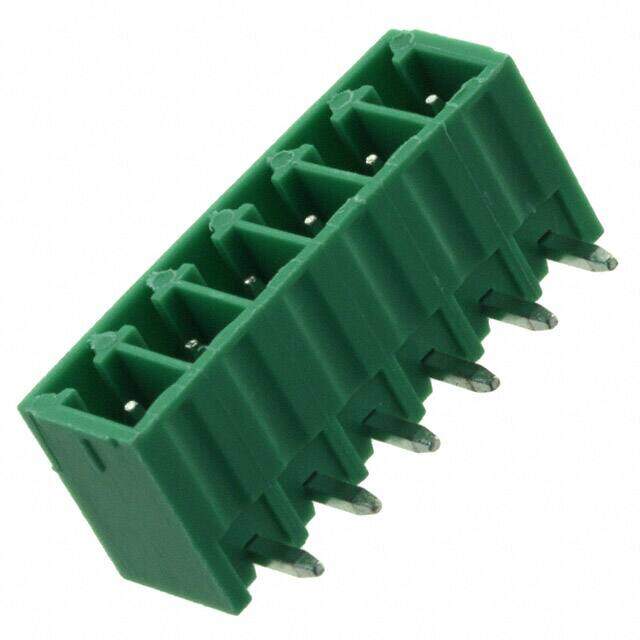

691322110006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.032985
≥1 USD $1.032985
≥10 USD $0.974507
≥100 USD $0.919351
≥500 USD $0.867311
≥1000 USD $0.818212
Inventory: 952
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Number of Pins 6
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 3221
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type PCB, Terminal Block
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Number of Rows 1
Gender Male
Pitch 0.138 3.50mm
Insulation Height 0.283 7.19mm
Termination Style Solder
Lead Pitch 3.5mm
Number of Contacts 6
Contact Gender Male
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Positions Per Level 6
Header Orientation 90°, Right Angle
Number of Positions Per Level 6
Dimensions
Height 9.2mm
Length 10.5mm
Width 22.1mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
