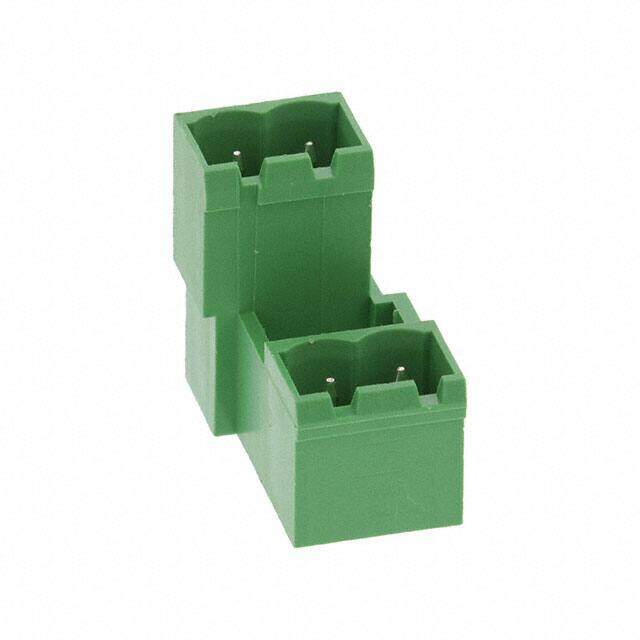

691319510004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
5.08 MM TERMINAL BLOCK HEADER, D
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.035711
≥1 USD $1.035711
≥10 USD $0.977085
≥100 USD $0.921779
≥500 USD $0.869599
≥1000 USD $0.820376
Inventory: 6219
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 3195
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Pitch 0.200 5.08mm
Insulation Height 0.933 23.70mm
Termination Style Solder
Contact Tail Length 0.157 4.00mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Positions Per Level 2
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
