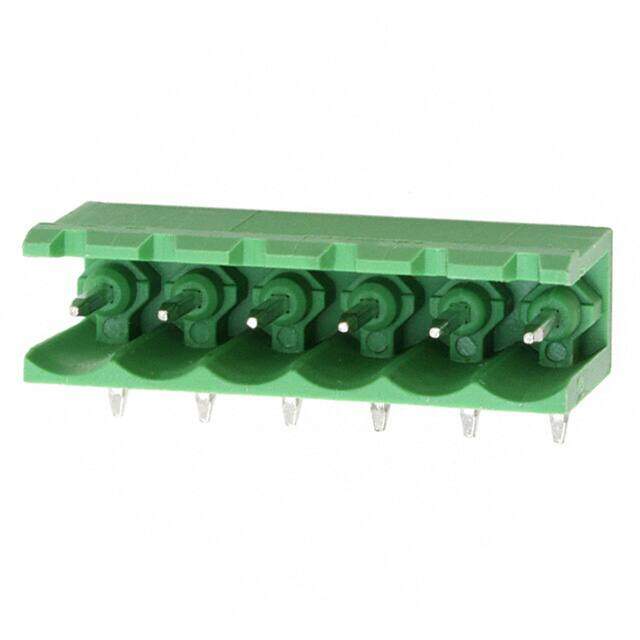

691312710006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.096248
≥1 USD $1.096248
≥10 USD $1.034198
≥100 USD $0.975657
≥500 USD $0.920432
≥1000 USD $0.868328
Inventory: 7061
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Number of Pins 6
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 3127
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type PCB, Terminal Block
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 1
Gender Male
Pitch 0.197 5.00mm
Insulation Height 0.335 8.51mm
Termination Style Solder
Lead Pitch 5mm
Number of Contacts 6
Contact Gender Male
Voltage 300V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 20A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 20A
Positions Per Level 6
Header Orientation 90°, Right Angle
Number of Positions Per Level 6
Dimensions
Height 12mm
Length 12.5mm
Width 30mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
