691312410005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

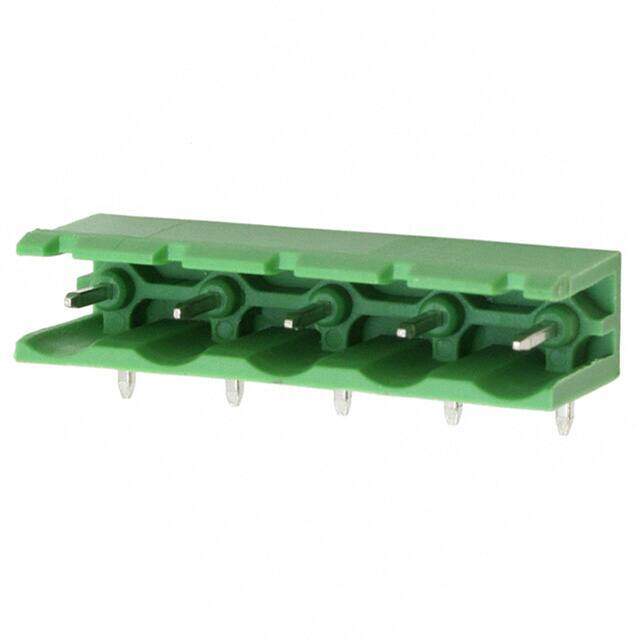

TERM BLOCK HDR 5POS 90DEG 7.62MM
PDF
/
Inventory: 3687
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Number of Pins 5
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-TBL Series 3124
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type PCB, Terminal Block
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 5
Color Green
Number of Rows 1
Gender Male
Pitch 0.300 7.62mm
Insulation Height 0.335 8.51mm
Termination Style Solder
Lead Pitch 7.62mm
Number of Contacts 5
Voltage 300V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 20A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 20A
Positions Per Level 5
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Dimensions
Height 12mm
Length 12.5mm
Width 36.28mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
