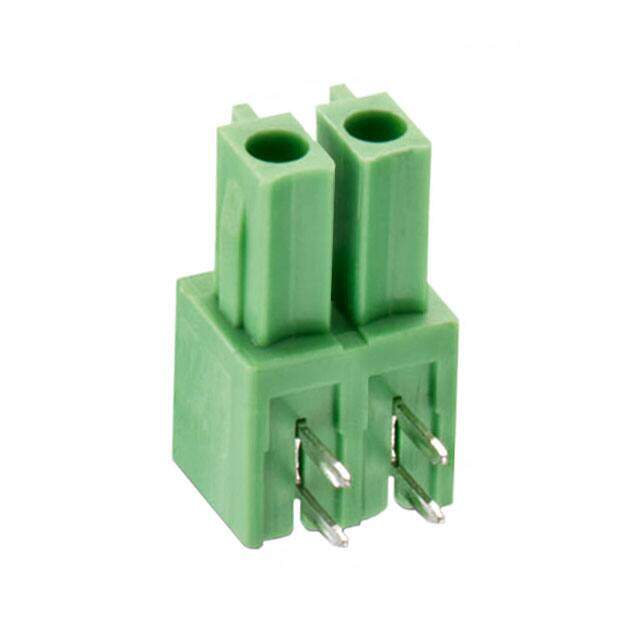

691309310002

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 3.81MM
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.861773
≥1 USD $0.861773
≥10 USD $0.812996
≥100 USD $0.766975
≥500 USD $0.723562
≥1000 USD $0.682603
Inventory: 6453
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 2
Header Orientation 90°, Right Angle
Positions Per Level 2
Current - UL 8A
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Lead Pitch 3.81mm
Termination Style Solder
Insulation Height 0.260 6.60mm
Pitch 0.150 3.81mm
Gender Female
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 2
Type Header, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-TBL Series 3093
Packaging Bulk
Operating Temperature -40°C~115°C

Physical

Housing Material Polyamide (PA66), Nylon 6/6
Number of Pins 2
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
