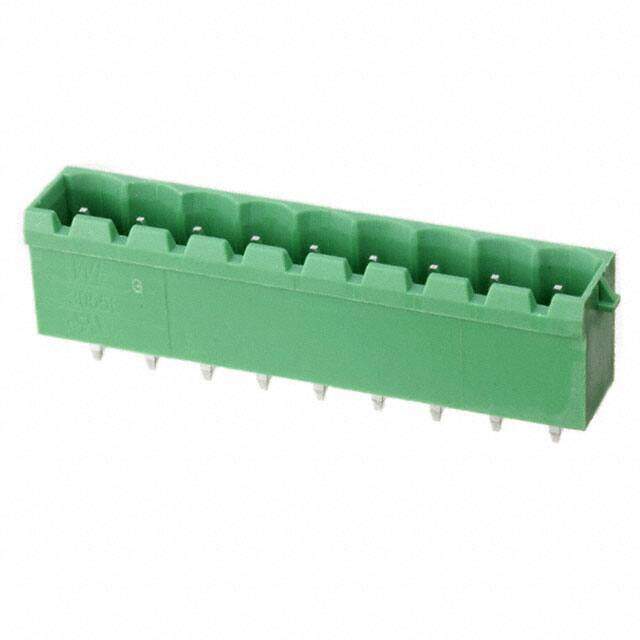

691305530009
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
WR-TBL SERIES 3055_5.08 MM_PCB H
PDF
/
Inventory: 957
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Positions Per Level 9
Current - UL 16A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.157 4.00mm
Termination Style Solder
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
Color Green
Number of Positions 9
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Locking Ramp
Series WR-TBL Series 3055
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 42 Weeks
