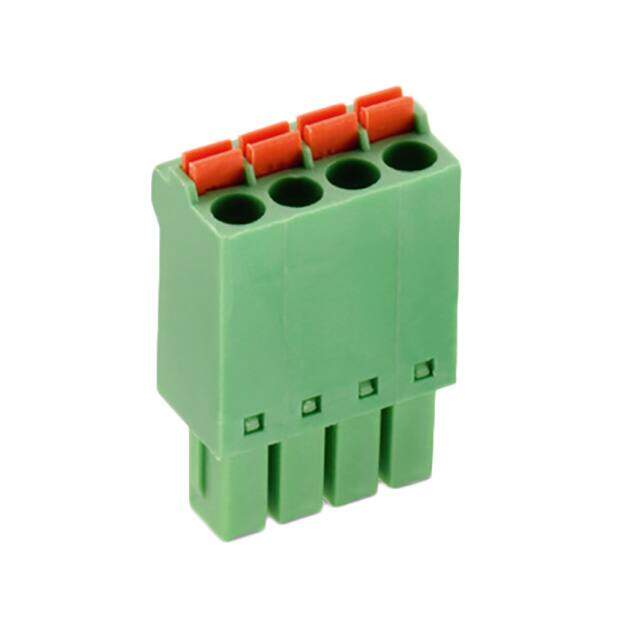

691304100007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Inventory: 7335
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Gauge or Range - mm2 0.21-1.31mm2
Plug Wire Entry 180°
Positions Per Level 7
Current - UL 12A
Wire Gauge or Range - AWG 16-24 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screwless
Insulation Height 0.307 7.80mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 7
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-TBL Series 3041
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 42 Weeks
