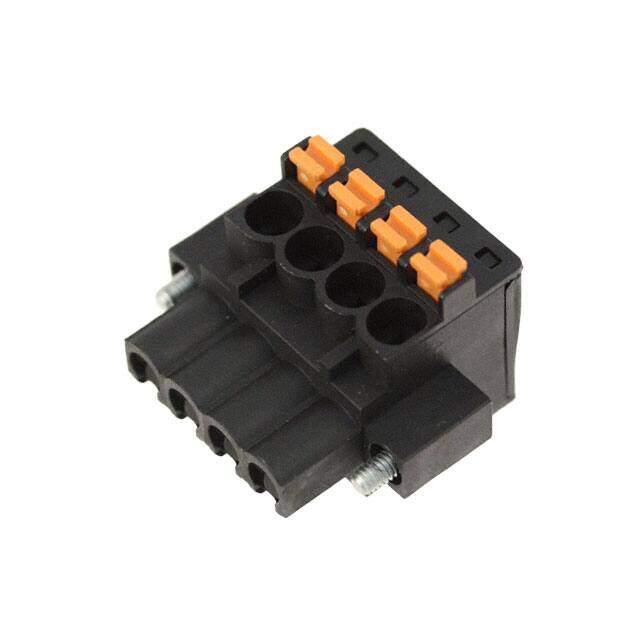

1982140000 image
Favorite
1982140000 image
Favorite

1982140000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 4POS 5.08MM
PDF
/
Inventory: 4602
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Stripping Length 10mm
Number of Positions Per Level 4
Current - IEC 24A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Safety Approval UL
Number of Ways 4
Voltage - IEC 400V
Current - UL 18.5A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Approval Agency CSA, cURus
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 19A
Insulation Height 0.815 20.70mm
Ingress Protection IP20
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Mounting Flange, Retention Latches (Non-Wire Side)
Series Omnimate BL
Published 2010
Packaging Box
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
