1980080000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

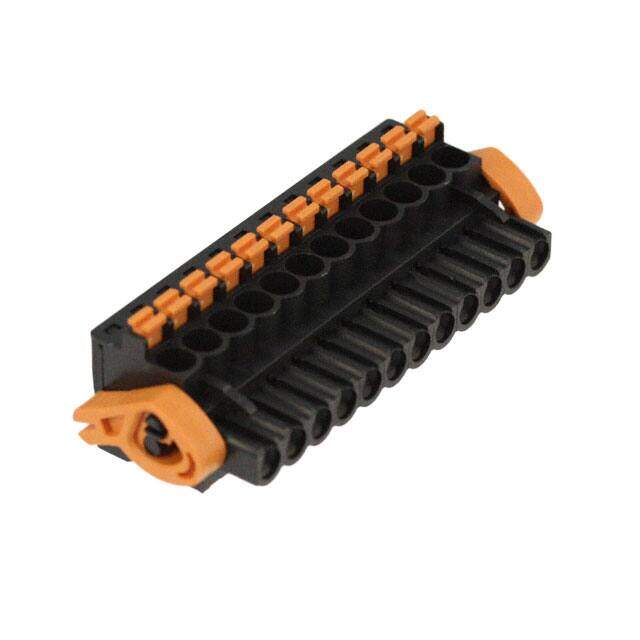

TERM BLOCK PLUG 12POS 90DEG 5MM
PDF
/
Inventory: 4927
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Stripping Length 10mm
Number of Positions Per Level 12
Current - IEC 24A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 12
Voltage - IEC 400V
Current - UL 18.5A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Approval Agency CSA, cURus
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 6A
Ingress Protection IP20
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Ejector Latches, Retention Latches (Wire Side)
Series Omnimate BL
Published 2010
Packaging Box
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
