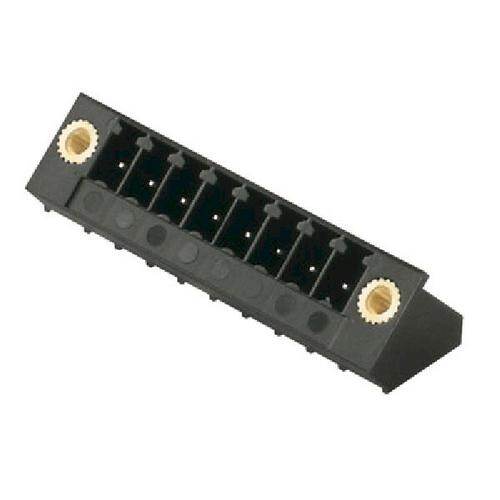

1978130000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Header
PDF
/
Inventory: 9786
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.3 mm
Header Orientation 135°
Safety Approval UL
Number of Ways 7
Voltage - IEC 320V
Current - UL 10A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Approval Agency CSA, cURus
Termination Style Solder
Current Rating 17.5A
Insulation Height 0.433 11.00mm
Ingress Protection IP20
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series Omnimate SC
Packaging Bulk
Operating Temperature -50°C~120°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
