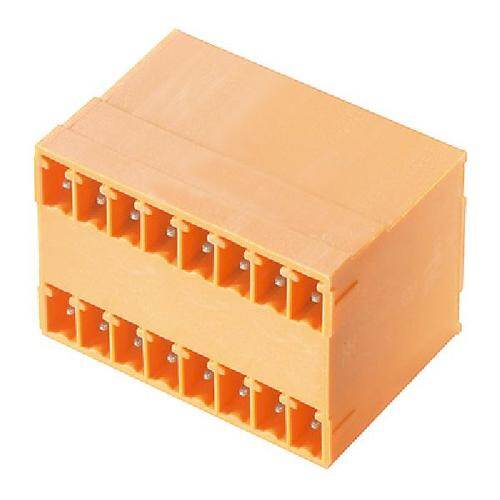

1972990000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Socket
PDF
/
Inventory: 1725
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate SC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 2
Additional Feature STANDARD: UL 94V-0
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.894 22.71mm
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Current - UL 10A
Voltage - IEC 320V
Positions Per Level 6
Number of Ways 12
Safety Approval UL; CSA
Header Orientation 90°, Right Angle
Current - IEC 17.5A
Rated Current 17.5A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
