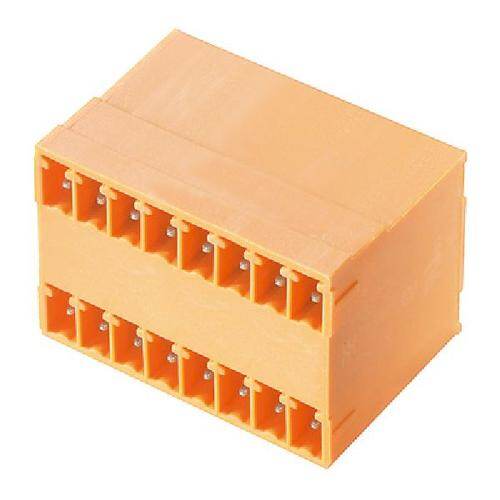

1972870000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 20POS 3.81MM
PDF
/
Inventory: 6827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate SC
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 20
Color Orange
Number of Rows 2
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.894 22.71mm
Current Rating 17.5A
Termination Style Solder
Approval Agency CSA, cURus
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Current - UL 10A
Voltage - IEC 320V
Positions Per Level 10
Number of Ways 20
Safety Approval UL; CSA
Header Orientation 90°, Right Angle
Hole Diameter 1 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
