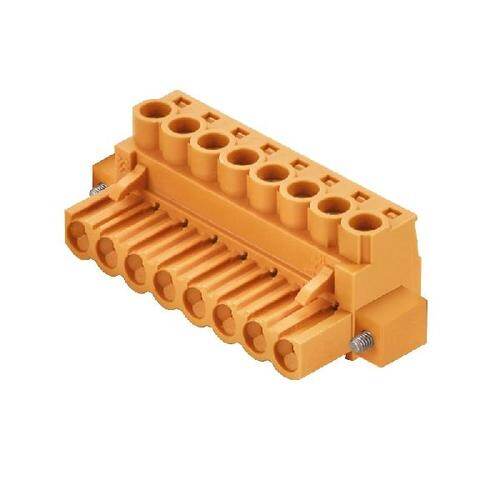

1955760000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Header
PDF
/
Inventory: 8085
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 4 mm2
Stripping Length 7mm
Screw Size M2.5
Current - IEC 23A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 6
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Voltage - IEC 400V
Current - UL 20A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Number of Levels 1
Approval Agency CSA, UR
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 15.5A
Insulation Height 0.632 16.05mm
Pitch 0.197 5.00mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Orange
Number of Positions 6
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series Omnimate BL
Published 2011
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
