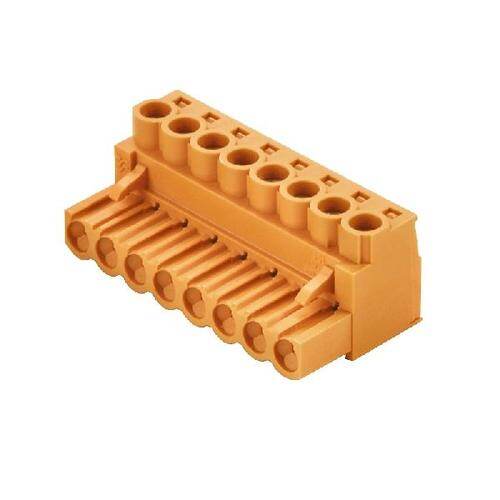

1955460000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 13POS STR 5MM
PDF
/
Inventory: 2272
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2010
Series Omnimate BL
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.632 16.05mm
Current Rating 15.5A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, UR
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 20A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 13
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Current - IEC 23A
Number of Positions Per Level 13
Screw Size M2.5
Stripping Length 7mm
Wire Cross Section 4 mm2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
