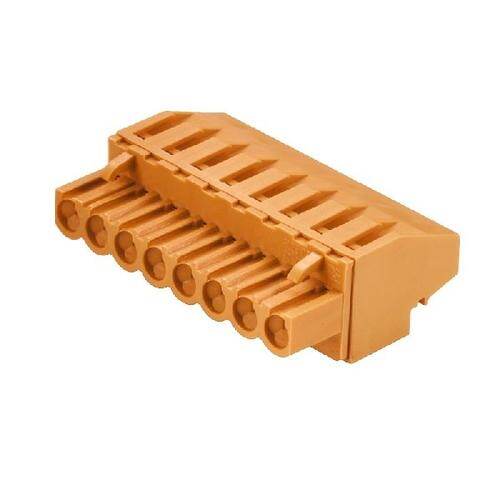

1948830000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS 5.08MM
PDF
/
Buying Options
Total Price: USD $5.89
Unit Price: USD $5.8872
≥1 USD $5.8872
≥10 USD $4.64112
≥100 USD $4.414784
≥500 USD $4.00737
≥1000 USD $3.8489
≥3000 USD $3.39607
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 4 mm2
Stripping Length 7mm
Screw Size M2.5
Number of Positions Per Level 6
Current - IEC 23A
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 270°
Safety Approval UL; CSA
Number of Ways 6
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Voltage - IEC 400V
Current - UL 20A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Approval Agency CSA, UR
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 13A
Insulation Height 0.555 14.10mm
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Retention Latches (Non-Wire Side)
Series Omnimate BL
Published 2010
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
