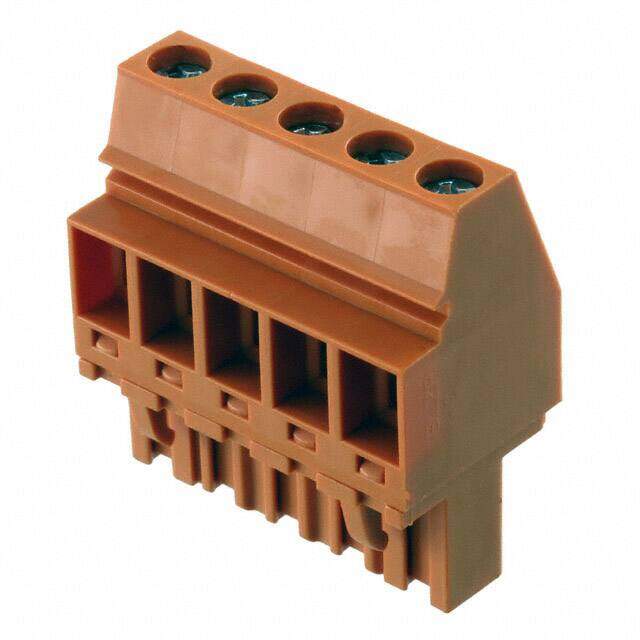

1948030000 image
Favorite
1948030000 image
Favorite

1948030000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description CONN PLUG TERM BLOCK 5.08MM 5POS
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.4736
≥1 USD $5.4736
≥10 USD $4.17032
≥100 USD $3.906144
≥500 USD $3.472093
≥1000 USD $3.396615
≥3000 USD $3.13243
Inventory: 164
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Technical

Wire Cross Section 4 mm2
Stripping Length 7mm
Screw Size M2.5
Number of Positions Per Level 5
Current - IEC 23A
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 90°
Safety Approval UL; CSA
Number of Ways 5
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Voltage - IEC 400V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 20A
Number of Levels 1
Voltage 300V
Approval Agency CSA, UR
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 13A
Insulation Height 0.555 14.10mm
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Wire Side)
Series Omnimate BL
Published 2008
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 6 Weeks
