1944090000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

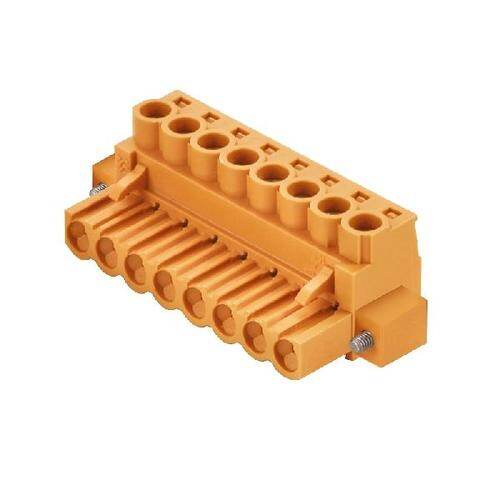

WEIDMULLER 1944090000 Pluggable Terminal Block, 5.08 mm, 2 Ways, 26 AWG, 12 AWG, 4 mm, Screw
PDF
/
Buying Options
Total Price: USD $2.69
Unit Price: USD $2.6928
≥1 USD $2.6928
≥10 USD $2.05304
≥100 USD $1.922976
≥500 USD $1.672194
≥1000 USD $1.542086
≥3000 USD $1.393462
Inventory: 180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2008
Series Omnimate BL
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature PBT, STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.632 16.05mm
Current Rating 15.5A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, UR
Number of Levels 1
Wire/Cable Gauge 26 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 20A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 7mm
Current - IEC 23A
Screw Size M2.5
Stripping Length 7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
