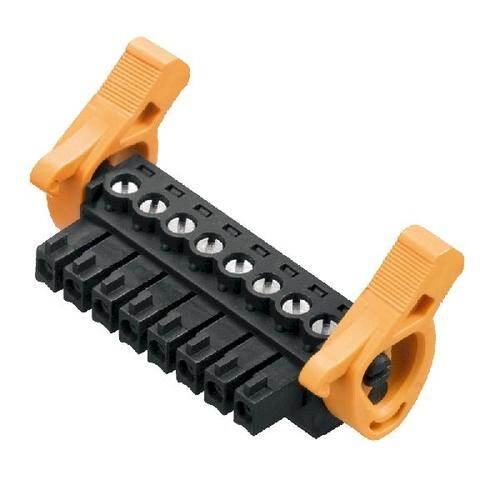

1941810000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Header
PDF
/
Inventory: 916
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Stripping Length 7mm
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 5
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Voltage - IEC 320V
Current - UL 10A
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 5
Wire/Cable Gauge 28 AWG
Number of Levels 1
Approval Agency CSA, cURus
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 17.5A
Ingress Protection IP20
Pitch 0.150 3.81mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 5
Type Plug, Female Sockets
Connector Type Terminal Block
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series Omnimate BC
Published 2007
Packaging Bulk
Operating Temperature -50°C~120°C
Physical
Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
