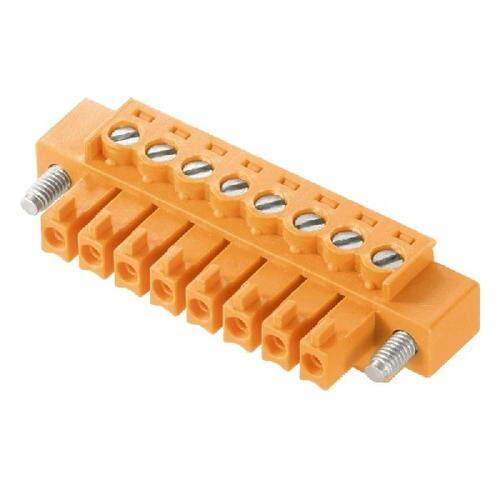

1941140000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Header
PDF
/
Inventory: 7114
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate BC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 15
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.437 11.10mm
Current Rating 17.5A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, cURus
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 16-28 AWG
Current - UL 10A
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways 15
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Screw Size M2
Stripping Length 7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
