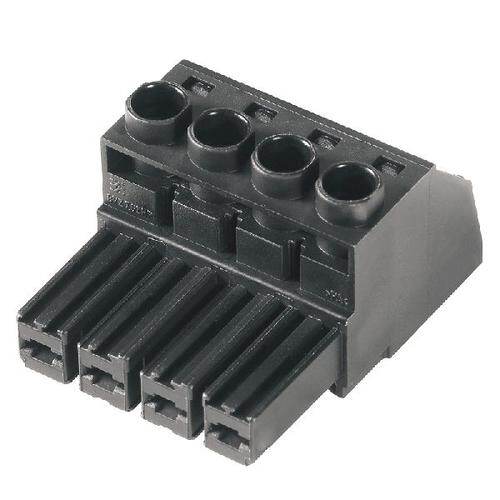

1929930000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 7.62MM
PDF
/
Buying Options
Total Price: USD $4.4
Unit Price: USD $4.4
≥1 USD $4.4
≥10 USD $3.35456
≥100 USD $3.141952
≥500 USD $2.792768
≥1000 USD $2.732048
≥3000 USD $2.519554
Inventory: 203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~125°C
Packaging Bulk
Published 2018
Series Omnimate BV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Blade Sockets
Number of Positions 2
Color Black
Number of Rows 1
Voltage - Rated 600V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Ingress Protection IP20
Insulation Height 0.909 23.09mm
Current Rating 35A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, cURus
Number of Levels 1
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Current - UL 40.5A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-6mm2
Wire Strip Length 12mm
Current - IEC 41A
Screw Size M3
Stripping Length 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
