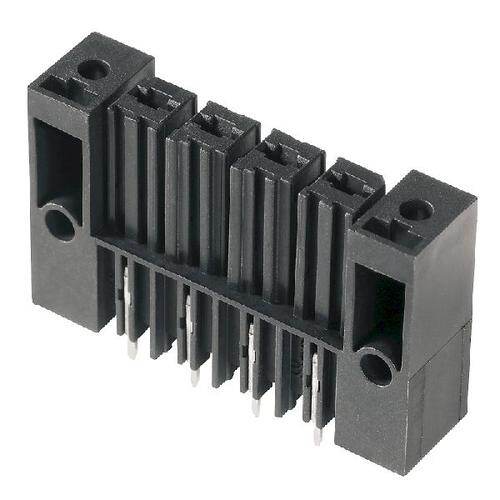

1928780000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Socket
PDF
/
Inventory: 6028
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1 mm
Current - IEC 41A
Header Orientation Vertical
Safety Approval UL
Number of Ways 7
Voltage - IEC 1kV
Current - UL 42A
Number of Decks 1
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Approval Agency CSA, cURus
Termination Style Solder
Current Rating 35A
Insulation Height 1.102 27.99mm
Ingress Protection IP20
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 7
Type Header, Blade Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series Omnimate BV
Packaging Bulk
Operating Temperature -50°C~130°C
Physical
Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
